Linux 17 - Create Partitions and Filesystems

partition
create filesystems
make swap space

Debian 6 64-bit-2012-03-15-00-35-02

There are two types of partitions on a block device

- primary

- extended

fdisk

Partition table manipulator for Linux

fdisk -l
List the partition tables for the specified devices and then exit. If no devices are given, those mentioned in /proc/partitions (if that exists) are used.

To work on a specific partition the command fdisk /dev/xxx would be used.

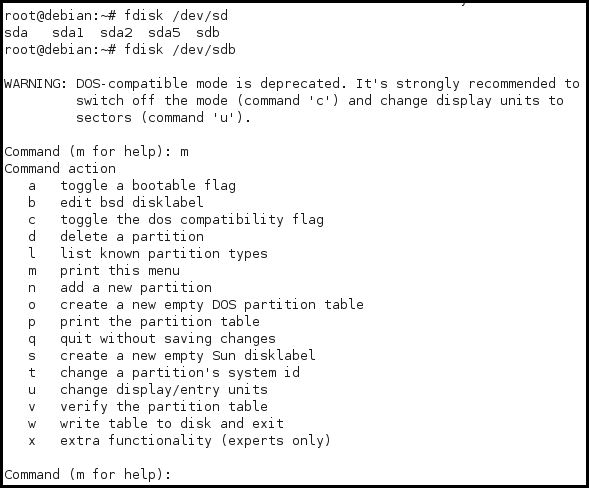

Here the command is fdisk /dev/sda

Debian 6 64-bit-2012-03-15-00-35-44

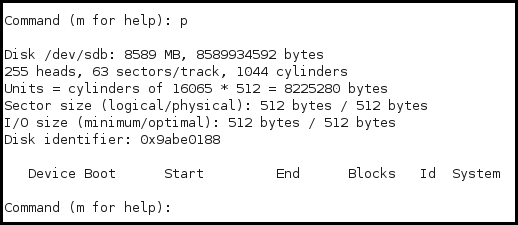

To print all partitions press “p”

Debian 6 64-bit-2012-03-15-00-37-54

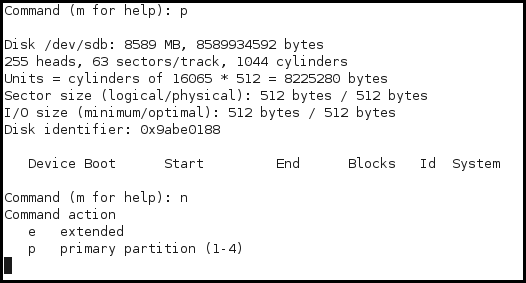

To add a new partition press “n”

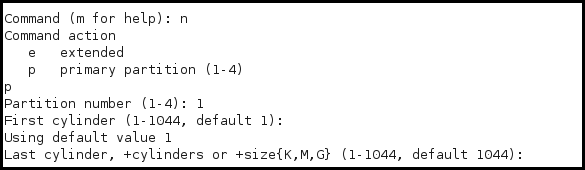

We will create a simple partition scheme so select “p” for primary


Which partition umber we want : 1

First cylinder is ok as 1 since there are no other partitions

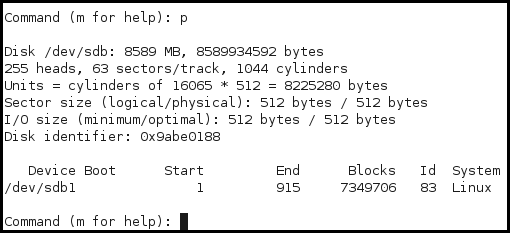

The last cylinder can be entered also as how many kilobytes, megabytes or gigabytes would we want, for this 8 GB disk I entered a value of +7G

Debian 6 64-bit-2012-03-15-00-56-07

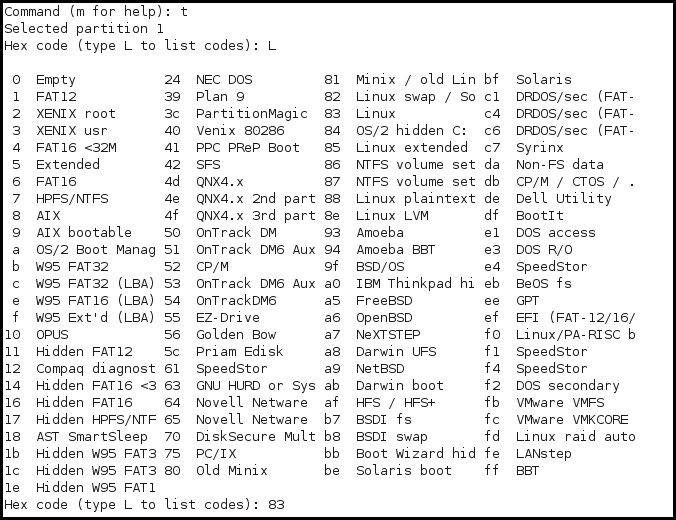

Next we need to create a partition table ID, this is not a format command but instead a way to help the system understand how it should read the information off the disk

Debian 6 64-bit-2012-03-15-00-59-17

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.
root@debian:~#
root@debian:~# fdisk /dev/sdb

WARNING: DOS-compatible mode is deprecated. It's strongly recommended to
         switch off the mode (command 'c') and change display units to
         sectors (command 'u').

Command (m for help): n
Command action
   e   extended
   p   primary partition (1-4)
p
Partition number (1-4): 2
First cylinder (916-1044, default 916):
Using default value 916
Last cylinder, +cylinders or +size{K,M,G} (916-1044, default 1044):
Using default value 1044

Command (m for help): p

Disk /dev/sdb: 8589 MB, 8589934592 bytes
255 heads, 63 sectors/track, 1044 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x9abe0188

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1               1         915     7349706   83  Linux
/dev/sdb2             916        1044     1036192+  83  Linux

Command (m for help): T
Partition number (1-4): 2
Hex code (type L to list codes): l

 0  Empty           24  NEC DOS         81  Minix / old Lin bf  Solaris
 1  FAT12           39  Plan 9          82  Linux swap / So c1  DRDOS/sec (FAT-
 2  XENIX root      3c  PartitionMagic  83  Linux           c4  DRDOS/sec (FAT-
 3  XENIX usr       40  Venix 80286     84  OS/2 hidden C:  c6  DRDOS/sec (FAT-
 4  FAT16 <32M      41  PPC PReP Boot   85  Linux extended  c7  Syrinx
 5  Extended        42  SFS             86  NTFS volume set da  Non-FS data
 6  FAT16           4d  QNX4.x          87  NTFS volume set db  CP/M / CTOS / .
 7  HPFS/NTFS       4e  QNX4.x 2nd part 88  Linux plaintext de  Dell Utility
 8  AIX             4f  QNX4.x 3rd part 8e  Linux LVM       df  BootIt
 9  AIX bootable    50  OnTrack DM      93  Amoeba          e1  DOS access
 a  OS/2 Boot Manag 51  OnTrack DM6 Aux 94  Amoeba BBT      e3  DOS R/O
 b  W95 FAT32       52  CP/M            9f  BSD/OS          e4  SpeedStor
 c  W95 FAT32 (LBA) 53  OnTrack DM6 Aux a0  IBM Thinkpad hi eb  BeOS fs
 e  W95 FAT16 (LBA) 54  OnTrackDM6      a5  FreeBSD         ee  GPT
 f  W95 Ext'd (LBA) 55  EZ-Drive        a6  OpenBSD         ef  EFI (FAT-12/16/
10  OPUS            56  Golden Bow      a7  NeXTSTEP        f0  Linux/PA-RISC b
11  Hidden FAT12    5c  Priam Edisk     a8  Darwin UFS      f1  SpeedStor
12  Compaq diagnost 61  SpeedStor       a9  NetBSD          f4  SpeedStor
14  Hidden FAT16 <3 63  GNU HURD or Sys ab  Darwin boot     f2  DOS secondary
16  Hidden FAT16    64  Novell Netware  af  HFS / HFS+      fb  VMware VMFS
17  Hidden HPFS/NTF 65  Novell Netware  b7  BSDI fs         fc  VMware VMKCORE
18  AST SmartSleep  70  DiskSecure Mult b8  BSDI swap       fd  Linux raid auto
1b  Hidden W95 FAT3 75  PC/IX           bb  Boot Wizard hid fe  LANstep
1c  Hidden W95 FAT3 80  Old Minix       be  Solaris boot    ff  BBT
1e  Hidden W95 FAT1
Hex code (type L to list codes): 82
Changed system type of partition 2 to 82 (Linux swap / Solaris)

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.
root@debian:~#

Now there are two partitions created.

root@debian:~# fdisk -l

Disk /dev/sda: 8589 MB, 8589934592 bytes
255 heads, 63 sectors/track, 1044 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x0003806e

   Device Boot      Start         End      Blocks   Id  System
/dev/sda1   *           1         996     7993344   83  Linux
Partition 1 does not end on cylinder boundary.
/dev/sda2             996        1045      392193    5  Extended
/dev/sda5             996        1045      392192   82  Linux swap / Solaris

Disk /dev/sdb: 8589 MB, 8589934592 bytes
255 heads, 63 sectors/track, 1044 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x9abe0188

   Device Boot      Start         End      Blocks   Id  System
/dev/sdb1               1         915     7349706   83  Linux
/dev/sdb2             916        1044     1036192+  82  Linux swap / Solaris
root@debian:~#

Create the swapspace

mkswap
sets up a Linux swap area on a device or in a file.

root@debian:~# mkswap /dev/sdb2
Setting up swapspace version 1, size = 1036188 KiB
no label, UUID=2e0358bf-469e-4823-a0b0-c6435f8f41bc
root@debian:~#

Swap is created, next is actually telling the system to use it

root@debian:~# swapon /dev/sdb2
root@debian:~#

Check

root@debian:~# swapon  -s
Filename                Type        Size    Used    Priority
/dev/sda5               partition   392184  0       -1
/dev/sdb2               partition   1036184 0       -2
root@debian:~#

Make /dev/sdb1 an ext2 formatted partition:

swapon check

Format as EXT3

Format as reiserFS

Format as XFS

Format as FAT32
